Motortester / Engine analyzer / Diagnose

Sun\'s CCL-82 is diagnostic power you should have. It helps you quickly and precisely pinpoint test automotive compression systems and two vital ignition system components.

EXHAUST GAS TESTER De CLT dient om lekkages in de verbrandingsruimte op te sporen en te lokaliseren. Tijdsbesparing wordt verkregen omdat exact is aan te geven waar het lek zich bevindt. Bijv. kleppen, zuigerveren en koppakking.

CYLINDER LEAKAGE TESTER * The accurate, compact and portable leakage tester * Otto-, Diesel- and motorcycle engines * Easy detection of leakages in the combustion chamber CLT 352 The CLT 352 is an easy to use, portable tester for measuring cylinder leakage within the combustion chamber. The CLT 352 comes as a rugged portable tester. M10 and M12 Motorcycle adaptors Various Diesel adaptors The Cylinder Leakage Tester consists of a gauge to read percentage leakage, a regulator valve, an air supply inlet and a regulated air outlet. The CLT 352 enables you to pinpoint the cause of any malfunction of the valves, piston rings or bores and cylinder head...

Easy human interfacel Powerful options World wide specifications Human Interface This analyser is configured with an easy-to-use human interface to access data and measurement results.The SUN configuration has as standard a virtual on-screen keyboard.Optionally, you can use a full size ASCII keyboard, wireless remote control and a light pen.Step into the future with the DGA 1000 - designed for worldwide use. Sun Configuration The DGA 1000 is a high performance exhaust gas analyser which meets the performance requirements of OIML class I and ISO 3930. The standard software supports the measurement of 4 gases, RPM, oil temperature and Lambda. An...

High-performance User friendly Modular construction The best fit now and for the future Whatever vehicles you service, a DGA 1800 can meet your requirements. Choose between gasoline and diesel - or both - along with LPG, gasohol or virtually and fuel type. As with the famous range of SUN Electric engine analysers; add the diagnostic sensor systems you need for the measurement of engine parameters such as ignition, timing and dwell and select from an inventory of make-specific test adaptors. At any time in the future, add a communications link to engine management ECU's and build up a software library of test...

DIAGNOSTIC GAS ANALYSER   High-performance, software-driven emissions analyser User friendly 'Windows' computer platform Flexibility for expansion of data and test analysis possibilities Advanced Emissions Testing with flexibility for the future The DGA 2000 combines highly advanced emissions diagnosis and testing with a user-friendly display layout based upon a 'Windows' platform. Running under a microprocessor with a Super VGA graphics card and monitor, the DGA 2000 will speedily lead the user through software-determined procedures for emissions diagnosis or mandatory testing. The ability to incorporate data reading and storage systems, such as CD-ROM increases the information and expertise available to the user. The possibilities for expansion...

DIGITAL MODULAIR UNIVERSAL   Placeholder page

DIGITAL MULTI-METER Deze multimeter is uitermate geschikt om moderne elektronische ontstekingen en systemen te testen, zoals ABS, airco, elektrische ruitbediening, controle deurvergrendeling etc. Ook bent u met de DMM 5 in staat om laad- en start- ~ circuits te meten en de storing exact vast te stellen.

MODULAR COMPUTER SYSTEM Modular platform State-of-the-art digital oscilloscope System and limits s MODULAIRE MOTORTESTER WITH UNIVERSAL AND BRANDS DIAGNOSE EXPERT SYSTEM …. De MCS 2000 SL is a microprocessor powered motordiagsystem. Build with an eye on the future. The modulair build offers many possibilities for new measurementfunctions. This system opens the way to purpose practical diagnosing and is a unique development for the modern garage. Find out more on this website: https://aapje.info/cars/opel-tech-80-sun-mcs-2000/ Systeem- en applicatiesoftware System & Applications Software for Flexibility MCS 2000 System Disk SDL Application Disk Sun Software allows your tester to change with the times 3.5" Diskette...

MODULAR ENGINE ANALYSER   * Accurate * Efficient * Affordable MEA 1200, digital accuracy and analog ignition scope The Sun Modular Engine Analyser combines accurate digital displays with the well proven analog ignition scope. The basic version is suitable for testing 2 and 4 stroke or rotary engines with conventional, transistorised or electronic advance ignition systems on 2,3,4,5,6,8 and 12 cylinders. All connections to the engine are by means of clampon connections providing for convenient and rapid hook-up. Technical Specifications Parameter Range(s) Resolution Parameter Range(s) Resolution RPM DWELL Timing Strobe Coil +(kl 15) Coil - (kl 1) Battery Volts 100…8000...

MODULAR ENGINE ANALYSER De nieuwe SUN MEA afkorting voor Modular Engine Analyser is multifunctioneel en biedt u meer mogelijkheden dan welke motortester dan ook in deze prijsklasse. Als u de MEA bezit, bent u de technische problemen de baas. Door de ruime keuze aan mogelijkheden hebt u altijd de juiste hulp bij de hand. MEA-1500 SL Introduction General information The modular engine analyzer, Model MEA-1500 SL, displays test data for the detection of abnormal operating conditions in gasoline internal-combustion engines. It is microprocessor-controlled and electronically self-calibrating. Testing is accomplished through: a 12 inch oscilloscope ("scope") that displays ignition, alternator and...

PDL 1000;  Portable Data Link Overview of available PDL 1000 cartridges Version year English German Dutch Spanish Italian French Ford Primary Cartridge V3.2 up till 1999 EESCGB220B EESCD220B EESCNL220B       EOBD Primary Cartridge V1.0   EESCGB225A EESCD225A EESCNL225A       Mercedes Primary Cartridge V1.0 up till 2000 EESCGB226A EESCDE226A EESCNL226A       Rover Primary Cartridge V3.0 up till 2000 EESCGB222B EESCDE222B EESCNL222B BMW Primary Cartridge V3.1 up till 2000 EESCGB227A EESCDE227A EESCNL227A EESCES227A EESCIT227A EESCF227A Renault Primary Cartridge V2.x up till 2000 EESCGB214B EESCDE214B EESCNL214B EESCES214B EESCIT214B EESCF214B Citroen Primary Cartridge V2.1 up till 2000 EESCGB219B EESCDE219B...

Photometric RPM Adaptors PRA-1 PRA-2 Read RPM with the following Sun products: PRA-1: Photometric RPM Adaptor, a small, selfpowered optical RPM meter for almost every revolving objects. It is fully compatible with other equipment but can also read and display RPM itself. PRA-2: Photometric RPM Adaptor, this optical sensor generates signals which can be translated into RPM's by equipment provided with an special processing board (ASA-200).

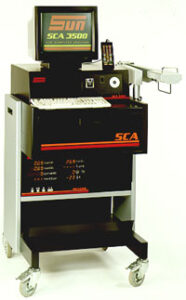

SUN COMPUTER ANALYSER * Top-of-the-Line Engine Analyser * Includes a worldwide database SCA 3500 - Combines affordability with flexibility This affordable engine analyser takes users as far as they want to go. The SCA 3500 has been specially developed for technicians who want more interpretation and reference functions than provided by ordinary analysers. Because this analyser uses a computer-platform it can take advantage of a faster processor and increased working and storage capacities if necessary. The SCA 3500 can function as a stand-alone diagnostic engine analyser which can test and diagnose virtually any vehicle engine and related vehicle system. The SCA 3500 offers you in-depth problem solving,...

Sun Modular Platform • Modular platform • State-of-the-art digital oscilloscope • System and limits software easily upgradable SOFTWARE To be able to test with the latest information the system- and limits software will be delivered on floppy disk. In this way it is possible to update your SMP 2000 with the latest information within minutes. STATE-OF-THE-ART DIGITAL OSCILLOSCOPE! The dual-channel digital labscope is a scope in a class of its own. With the aid of the latest technology it is capable of doing everything you want to do with a modern oscilloscope! The symbol-controlled scope has got many features such as: a zoom function,...

Sun Modular Platform   Top-of-the-line powerful digital oscilloscope Hook-up pictures to ensure easy component search Windows™ based system for user friendly operation Worldwide reputation in automotive test equipment Sun Electric has been active in the automotive test equipment market for almost 70 years. From its base in Amsterdam, Sun Electric Europe leads its operations in Europe, Africa and the Middle East with six subsidiaries and 35 distributors. The SMP 4000 is able to test all modern ignition systems like Wasted Spark, Dual Distributor and Direct Ignition systems without additional adaptors. With the SMP 4000 software, both programmed test sequences or flexible test options are available. The choice depends on...

MODULAR COMPUTER SYSTEM  • Modular platform • State-of-the-art digital oscilloscope • System and limits s MODULAIRE MOTORTESTER WITH UNIVERSAL AND BRANDS DIAGNOSE EXPERT SYSTEM .…. The Tech80 is very simulair to the MCS-2000 but brand optimized for Opel, it is a microprocessor powered motordiagsystem. Build with an eye on the future. The modulair build offers many possibilities for new measurementfunctions. This system opens the way to purpose practical diagnosing and is a unique development for the modern garage. Find out more on this website: https://aapje.info/cars/opel-tech-80-sun-mcs-2000/

VACUUM/PRESSURE TESTER De VPT is een vacuum/drukmeter. Hiermee kan het brandstofsysteem van carburateurmotoren worden getest alsmede vacuum in systemen welke met onderdruk funktioneren, zoals inlaatspruitstuk, afstelling stationair toerental, PCV kleppen en uitlaatgasregeling. Verder bezit de VPT een extra fijne vacuumschaal t.b.v. carburateur afstellingen.
